Features:
* Art design-best exterior construction and good appearance
* Trustable highly precise metrology equipment
* High performance for electronic parts
* High quality explosion-proof motor with strong ability against power fluctuation
* Specially designed filtering systems with build-in re-cleanable filter
* With rich functions expansion like POS for smart card and bank card
* Flexible fuel application for gasoline, diesel, and kerosene etc.
* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment
* Easy installation with forklift
* 15 inch touchscreen– AD and promotion
* Voice intercom
Featured parts:
Optional Configuration:
Printer, IC card, ID card, Hose retractor, communication for FMS, vapor recovery, break away, swivel, emergency stop, LED light,ect
Technical specifications:
Accuracy for the unit |
±0.25% |
Flow rate |
5-50L/min, 5-80L/min |
Ambient temperature |
-25℃ ~ +50℃; -45℃ ~ +50℃ |
Relative humidity |
20% ~ 95% |
Unit noise rate |
< 70dB (A); |
Inlet vacuum rate for suction pump |
≧54kPa |
Communication |
With RS 485 port, or current loop |
Power supply |
AC 110V( -15%~+10%),(50/60±1)Hz |
Digit of sale |
7digits (decimal points can be adjusted ) |
Digit of volume |
6digits (decimal points can be adjusted ) |
Digit of unit price |
5digits (decimal points can be adjusted ) |
Totalizer of sale |
0~42949672.95 |
Totalizer of volume |
0~42949672.95 |

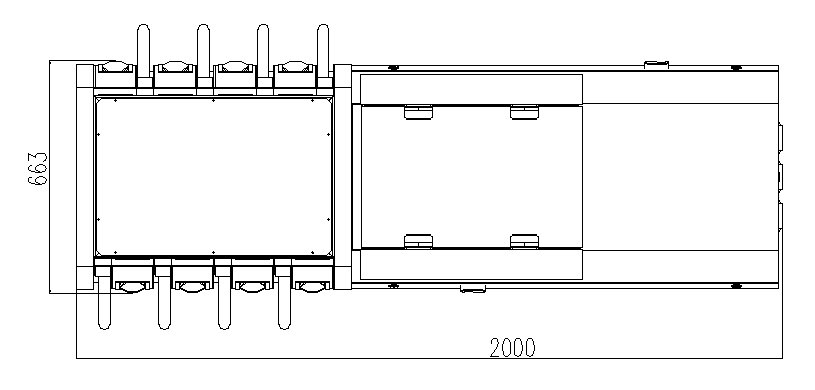

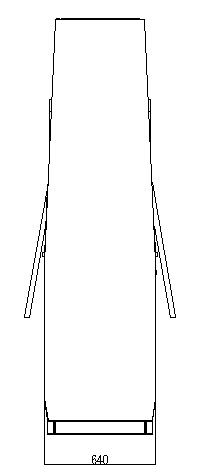

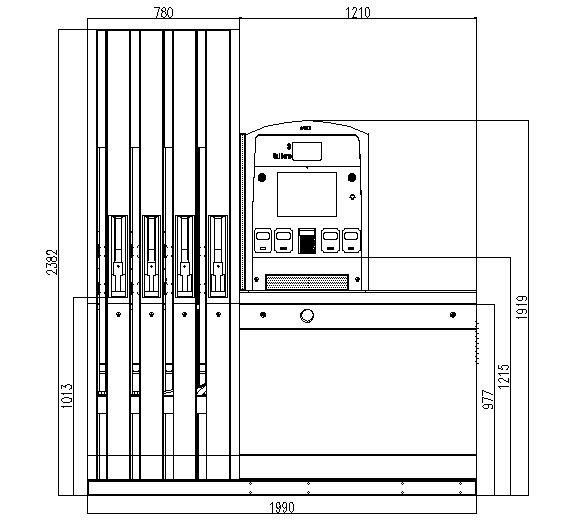

Dimensions
Model |
Product |
Nozzle |
Display |
Package(mm) |
Gross weight |
|
SK65G/QF422B |
2 |
4 |
2 |
1/side |
1445*780*2520 |
480/405 |
SK65G/QF632B |
3 |
6 |
2 |
1/side |
1900*780*2520 |
580/470 |
SK65G/Q842B |
4 |
8 |
2 |
1/side |
2080*780*2520 |
700/550 |
G: Gear pump Q: Submersible pump |
