SK-65

SK-65 Standard Fuel Dispenser
( Printer; IC card; Communication for FMS; Break away; Emergency stop ect. )

* Best exterior construction and good appearance

* Trustable highly precise metrology equipment

* High performance for electronic parts

Features:

* Best exterior construction and good appearance

* Trustable highly precise metrology equipment

* High performance for electronic parts

* High quality explosion-proof motor with strong ability against power fluctuation

* Specially designed filtering systems with build-in re-cleanable filter

* With rich functions expansion like POS for smart card and bank card

* Flexible fuel application for gasoline, diesel, and kerosene etc.

* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment

Categories: Standard Series, Fuel Dispenser

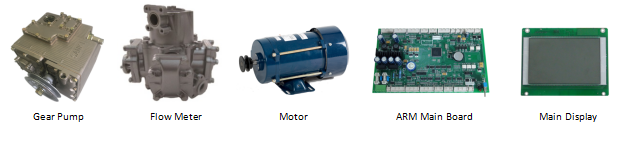

Featured parts:

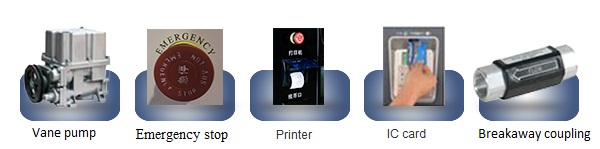

Optional Configuration:



Technical specifications:

Accuracy for the unit ±0.25%
Flow rate 5-50L/min
Ambient temperature -25℃ ~ +55℃; -45℃ ~ +55℃
Relative humidity 20% – 95%
Unit noise rate < 70dB (A);
Inlet vacuum rate for   suction pump ≧54kPa
Communication With RS 485 port, or current   loop
Power supply AC 220V( -15%~+10%),   (50/60±1)Hz ;

AC 380V( -15%~+10%); (50/60±1)Hz

Digit of sale 7digits (decimal points can be adjusted )
Digit of volume 6digits (decimal points can be adjusted )
Digit of unit price 5digits (decimal points can be adjusted )
Totalizer of sale 0~42949672.95
Totalizer of volume 0~42949672.95

Model Range



SK65ZF422B SK65ZF632B SK65ZF842B



Model Pump Nozzle Product Flow Meter Display Package Size(mm) Gross Weight(Kg)
SK65Z/GF212B suction pump 1 2 1 2 2 1025*740*2115 282/297
SK65ZF422B 2 4 2 4 2 1180*740*2115 345/375
SK65ZF632B 3 6 3 6 2 1633*740*2115 444/489
SK65ZF842B 4 8 4 8 2 2087*740*2115 550/610
SK65QF212B Submersible pump 2 1 2 2 1025*740*2115 247
SK65QF422B 4 2 4 2 1180*740*2115 275
SK65QF632B 6 3 6 2 1633*740*2115 340
SK65ZQ842B 8 4 8 2 2087*740*2115 410
