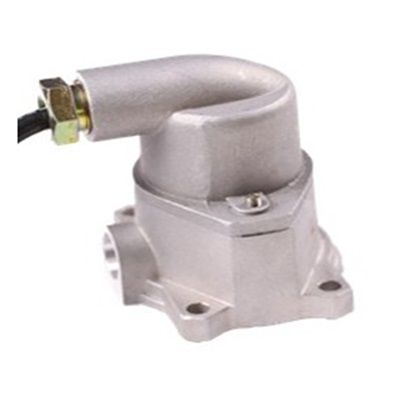

SK-S

Sensor
( Pulser generator; Sent signal; CNEX, ATEX certificates )

*Convert the mechanical transmission signal of flow meter into electrical pulse signal;
*Send the electrical pulse signal to main-board to realize the metrology function of the flow meter;

Application:
* Convert the mechanical transmission signal of flow meter into electrical pulse signal;
* Send the electrical pulse signal to main-board to realize the metrology function of the flow meter;
* CNEX, ATEX certificates
Technical specification:
Item
Description
Working Voltage
DC 12V
Working Current
≤30mA
Ambient Temperature
-25℃~ +55℃
Output Pulse characteristics
Output duplex pulse signa, Output OD
Type of Output Pulse
A 、B pulse is 90 ° phase, 50 Pulse/R
Note:
1. Power Supply should be strictly abide by the working voltage of the sensor.
2.Wire should be connected right according to its color.
3.No plug and unplug the terminal when power on.
